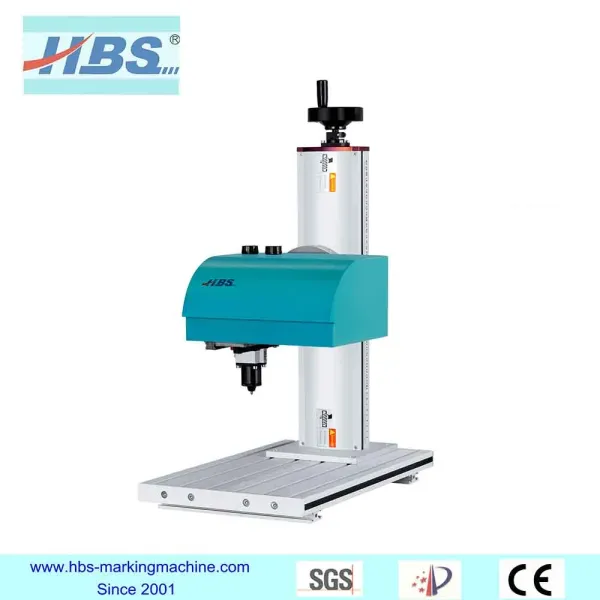

Electronic DOT Matrix DOT Peen Marking Machine /DOT Pin Marking Machinefor Nameplate/VIN number machine
| Marking Area |
150mm x 100mm |
| Repetition Accuracy |
0.05mm |
| Marking Depth |
0.02-1mm(Adjustable with different material) |
| Marking Speed |
1500-2000mm/Min |
| Power Supply |
AC220V ±10% 50Hz |
| Power consumption |
≤350W |
| Circular Marking |
Φ5-100mm (Large circular clamp can be customized) |
Packing Details
Dimension(mm): 750X530X390 (marking: 320X440X800, controller:390X380X150)
Net Weight(kg): 64(machine: 58, controller: 6)
Gross Weight(kg): 68
Product Features
No need to equip with pneumatic supply or computer, built-in programming system with industrial microcomputer and various USB ports.
Able to mark on wide variety of products or signs made of steel, iron, copper, aluminum, plastic and other material.
Able to mark in Chinese and English characters, Arabic numbers and any picture with harmonized and aesthetic effects.
Serial number automatically increasing or decreasing, VIN code, random code and 2D code, etc.
Key factor is high impact frequency of marking head and fast marking speed making. It's possible for mass production to customers' satisfaction.
Very small force of marking pin has no influence on the mechanical property of work pieces.
Marking depth from 0.02~1mm (adjustable), meeting demands for various marking depth.
Simple operation, easy maintenance.
Exhibition
Product Description
Mainly for metal such as steel, iron, copper, aluminium, etc.
DOT peen marking machine is widely used to make serial number such as VIN code, 2D code.
Company Info
Founded in 2001, HBS has 17 years experience in laser industry.
HBS has acquired quality certifications such as CE, BV, SGS, ISO9001, which ensures supreme quality.
HBS has provided numerous well-known companies with wide range of solutions and reliable marking equipment.
The price is not expensive considering it's factory price. Welcome to visit our factory!
