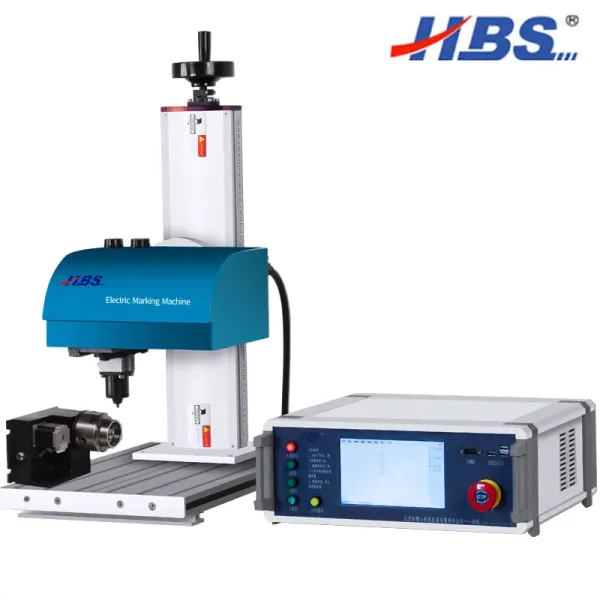

Chassis Number Serial Number dot Peen Marking Machine HBS-JZ115D
Product Features
No need to equip with pneumatic supply or computer, built-in programming system with industrial microcomputer and various USB ports.
Able to mark on wide variety of products or signs made of steel, iron, copper, aluminum, plastic and other material.
Able to mark in Chinese and English characters, Arabic numbers and any picture with harmonized and aesthetic effects.
Serial number automatically increasing or decreasing, VIN code, random code and 2D code, etc.
Key factor is high impact frequency of marking head and fast marking speed making. It's possible for mass production to customers' satisfaction.
Very small force of marking pin has no influence on the mechanical property of work pieces.
Marking depth from 0.02~1mm (adjustable), meeting demands for various marking depth.
Simple operation, easy maintenance.
Product Application
Common metals and alloys (iron, copper, aluminum, magnesium, zinc, etc and all other metals), rare metal and alloy (gold, silver and titanium); metallic oxide (various kinds of metal oxide), special surface treatment (phosphating, anodized aluminum, plated surface); ABS material (electrical appliances shell, daily necessities), ink (light buttons, printed products), epoxy resin (encapsulation of electronic components, insulating layer).
Technical Parameter
| Model |
JZ115D |
| Marking Content Marking Content |
Numbers, Chinese/English characters, graphics |
| Marking Area |
150mm x 100mm |
| Repetition Accuracy |
0.05mm |
| Marking Depth |
0.02-1mm(Adjustable with different material) |
| Marking Speed |
1500-2000mm/Min |
| Power Supply |
AC220V ±10% 50Hz |
| Power consumption |
<=350W |
| Circular Marking |
Φ5-100mm (Large circular clamp can be customized) |
Non-standard Options
| Marking Area |
150mmx150mm,200mmx200mm |
| Circular Marking |
Can be customized as user's requirement |
Packing Details
| Dimension(mm) |
750X530X390 (marking: 320X440X800, controller:390X380X150) |
| Net Weight(kg) |
64(machine: 58, controller: 6) |
| Gross Weight(kg) |
68 |
Shipping and delivery
1. By Air
- From Beijing Airport to customer's local Airport, within 2 days against the receiving of prepayment.
2. By Sea
- From China Tianjian Seaport to customer's nearest Seaport, within 3 days against the receiving of prepayment.
3. By TNT/DHL
By door to door delivery, from HBS factory to customer's office or factory.
