Portable Handheld Electric dot Peen Marking Machine/dot Pin Engraver for car VIN code
Technical Parameter
| Model |
HBS-380D |
| Marking Content |
Line, Arc, Angularity,Dot-Matrix, |
| Marking Area |
30mm x 80mm |
| Repetition Accuracy |
0.05mm |
| Marking Depth |
<=0.3mm (Adjustable with different material) |
| Power Supply |
AC220V ±10% 50Hz |
| Power consumption |
<=350W |
| COM Port |
RS232, USB |
| Marking Speed |
2 - 5 Characters Per Second |
Marking Options
HBS-130D - 30mm x130mm HBS-6130D - 60mm x130mm
Packing Details
Dimension(mm): 620X290X460 (marking head: 138X100X50, controller:235X185X190)
Net Weight(kg): 8(machine head: 3.6, controller: 4.4)
Gross Weight(kg): 10
Product Introduction
The latest machine developed by the HBS, function without compressed air supply. It's a pioneer product in China with registered patents. The electromagnetic marking can be used anywhere as long as there is power supply. It can be equipped with battery in case of field work. Compared with pneumatic marking systems, noise level is lower.
The portable marking head is ideal choice for marking on large-scale or heavy work pieces which is difficult to move.
Fully off-line operation, user friendly interface, easy to use and simple to operate.

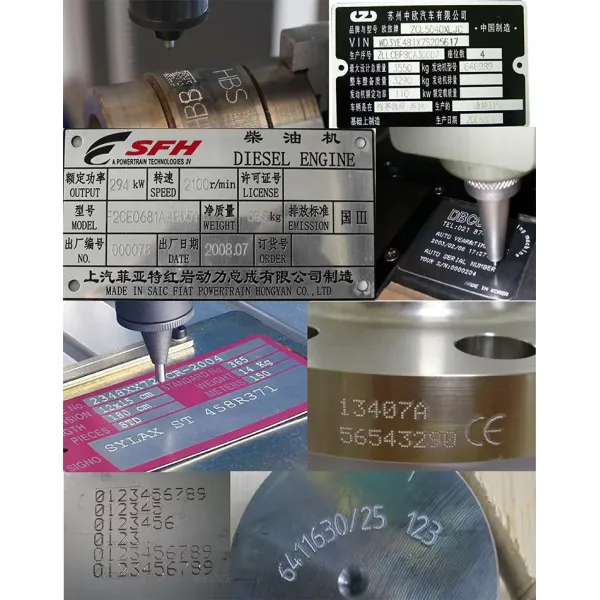

Automatic marking of Chinese and English characters, running numbers, VIN code, bitmap font, 2D code, etc.
Marking pin is made of typical hard alloy and marking on products with hardness up to HRC62.
Anti-interference, strong resistance against radiation and well adapted for harsh environment work.
Extremely low failure rate, less maintenance
Low power consumption, low cost, low price
