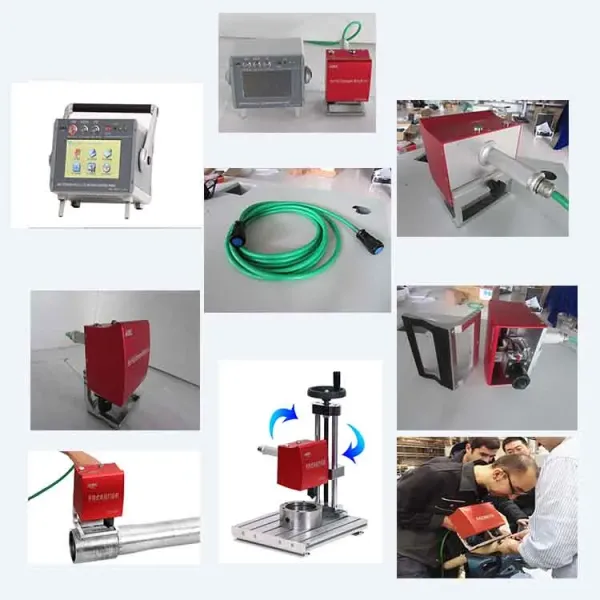

Portable DOT Pin Marking Machine with Trollet System

Product Categories

HBS Tech Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Model NO. : HBS-6130D

Marking Content : VIN Code, Graphics, Characters, Numbers

Style : Portable

Production Capacity : 100000PCS

Price : US $1,950-2,350 / P

Certification : CE

Using Method : DOT Pin

Marking Way : Electric /Pneumatic

Transport Package : Cartons

Origin : China

HS Code : 8494301090

MOQ : 1 Piece

Marking Area : 30*80mm

Marking Depth : 0.1-1mm

Specification : 640*260*460mm

Trademark : HBS

Contact Now

Technical Parameter

Model HBS-6130D

Marking Area	30mm x 80mm
Marking Pattern	Line, Arc, Angularity, Dot-Matrix
Marking Depth	<=0.3mm (Adjustable with different material)
Marking Hardness	<=HRC62
Marking Speed	2 - 5 Characters Per Second
Power supply	AC220V ±10% 50Hz
COM Port	RS232, USB
Power Consumption	<=350W

Marking Options

HBS-130D - 30mm x130mm

HBS-6130D - 60mm x130mm

Packing Details

Dimension(mm)	620X290X460 (marking head: 138X100X50, controller:235X185X190)
Net Weight(kg)	8(machine head: 3.6, controller: 4.4)
Gross Weight(kg)	10

Product Introduction

The latest machine developed by the HBS, function without compressed air supply. It's a pioneer product in China with registered patents. The electromagnetic marking can be used anywhere as long as there is power supply. It can be equipped with battery in case of field work. Compared with pneumatic marking systems, noise level is lower.
The portable marking head is ideal choice for marking on large-scale or heavy work pieces which is difficult to move.
Fully off-line operation, user friendly interface, easy to use and simple to operate.
Automatic marking of Chinese and English characters, running numbers, VIN code, bitmap font, 2D code, etc.
Marking pin is made of typical hard alloy and marking on products with hardness up to HRC62.
Anti-interference, strong resistance against radiation and well adapted for harsh environment work.
Extremely low failure rate, less maintenance
Low power consumption, low cost, low price
