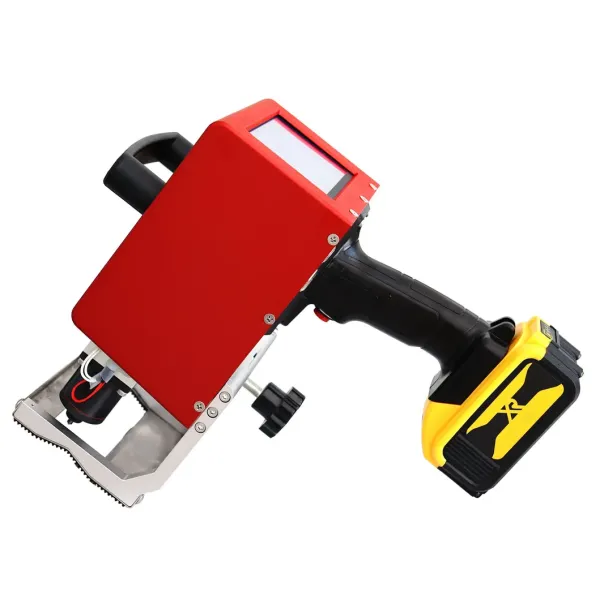

All In One Electric DOT Peen Marking Machine With Battery

Marking Area : 30*80mm

Model NO. : HBS-380D

Marking Content : Number, Chinese/English Characters, Graphics

Origin : Beijing

Transport Package : Cartons

MOQ : 1 Piece

Power : Lithium Battery

Marking Depth : 0.1-1.0mm

Price : US $1,850-2,150 / P

Specification : 620x290x460mm

Trademark : HBS

Production Capacity : 300/Month

HS Code : 8479819000

Contact Now

All-in-one electric dot peen marking machine with battery

1. Product Introduction

HBS-380D(New) is a new presented portable electric dot pin marking machine, there's no need to equip with pneumatic supply. With mini and light weight characters, the machine has wider application indoor and outdoor compared with traditional marking machine.

HBS-380D(New) can mark on metal and some non-metal materials, making the dot-shape marks through hard alloy needle knocking on material in high frequency. The marks will not be rubbed off or faded away.

Recommended reason: light-weighted , Mini and compact structure, portable, integrated software, easy operation and maintenance free

2. Parameters:

Model	HBS-380D
Marking area	30x80mm
Marking Frequency Range	A-F(fast to slow)
Marking Strength Range	1-9(high and low)
Marking Format	dot-matrix font, QR code,DM code,Serial number, LOGO graph,etc
Marking Depth	0-1mm( based on material hardness)
Marking hardness	HRC62
Lifespan of marking pin	Lifespan of marking pin
Marking Speed	2-5 characters/second
Repeatability	≤0.02mm
Port	USB port, WIFI connection (Android)
Languages	Chinese, English, Russian, Vietnamese, Korean, Spanish, etc
Font	Single line font, Double line font, DOT7x5, DOT5x5(font expandable)
Consumption	≤350W
Working Temperature	0-45ºC
Power Supply	Lithium battery 21V/6.8Ah(including two batteries)
Total Weight	4KG

3. Touch Screen Interface

4. Product Structure Diagram

5. Marking Sample

6. Exhibition in IMTS,USA

7. Company Info:

Founded in 2001, HBS has 17 years experience in laser industry.

HBS has acquired quality certifications such as CE, BV, SGS, ISO9001, which ensures supreme quality.

HBS has provided numerous well-known companies with wide range of solutions and reliable marking equipment.

The price is not expensive considering it's factory price. Welcome to visit our factory!
