Portable Handheld Laser Marking Machine with Safe Cover

Operation Interface : Built-in 7-Inch Touchscreen, Linux Operating Syste

Price : US $1,850-2,950 / P

Type : Optical Fiber Laser Marking Machine

Technical Class : Pulse Laser

Laser Wavelength : Fiber Laser

Cooling : Air Cooling

Marking Wavelength : 1064nm

Power Supply : 220V/110V

Laser Visibility : Visible

Production Capacity : 200/Mounth

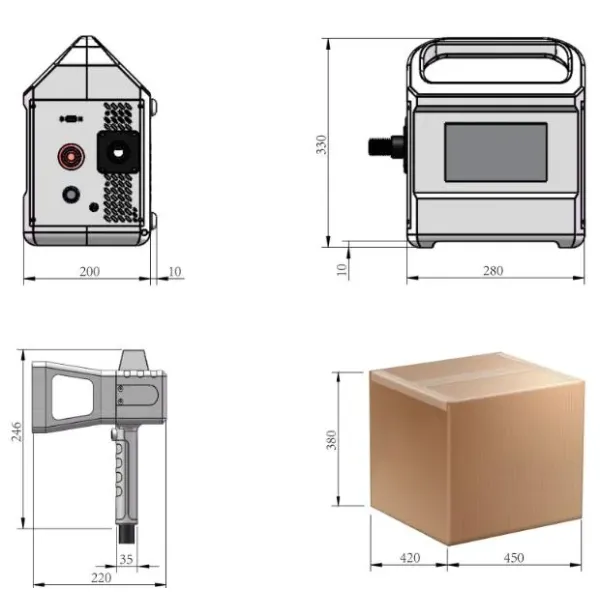

Transport Package : Dimension(mm): 450X420X380

Marking Method : Scanning Marking

Product Name : Portable Handheld Laser Marking Machine with Safe

Marking Area : 110*110mm/150*150mm

MOQ : 1 Piece

Language : Simplified Chinese, English, Korean, German, etc

HS Code : 8456110090

File Format : PNG/JPG/BMP/Dxf/Plt/Svg

Model NO. : HBS-GQ-20C

Maximum Pulse Energy : 0.7mj

Cooling System : Air Cooling

Origin : Beijing

Applicable Material : Metal

Laser Classification : Solid Laser

Trademark : HBS

Contact Now

Portable handheld laser marking machine with safe cover

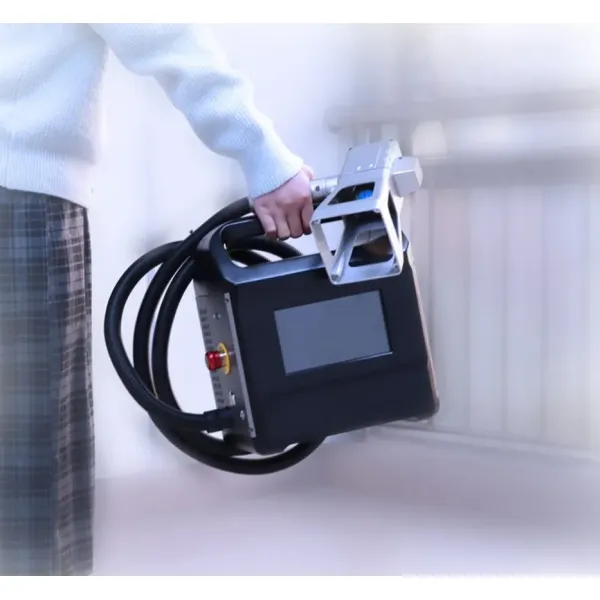

The whole machine is very light --6.5KG.The laser head is only 1.2kg
Portable Handheld Laser Marking Machine with Safe Cover

Charging/Plugging Optional

Portable Handheld Laser Marking Machine with Safe Cover

One-click Marking
Portable Handheld Laser Marking Machine with Safe Cover

Technical Specification

Material of whole machine	Engineering Plastics
Laser Type	Fiber laser
Average power	20 watts
Marking Wavelength	1064nm
Maximum pulse energy	0.7mj
Laser Repetition Frequency	1-600 kHz
Marking Method	High Precision Double-circle scanning mode
Laser Power Lifetime	100,000 hours (Theoretical data)
Cooling System	Air Cooling
Fiber cable length	1.75m
Marking Speed	≤7000mm/s

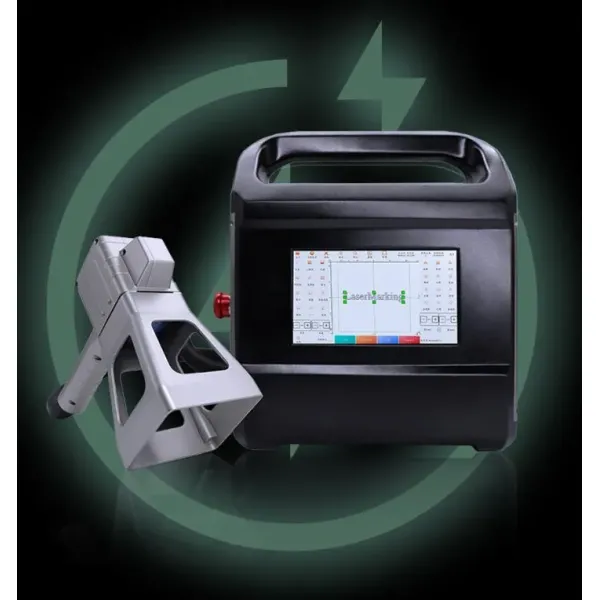

Operation Interface	Built-in 7-inch touchscreen, Linux operating system
Marking Area	100mm×100mm
Language	Simplified Chinese, English, Korean, German, etc
File Format	Png/jpg/bmp/dxf/plt/svg
Barcode/QR code	CODE25 CODE39,CODE49,CODE93 CODE126 CODE128 EAN13,EAN128 PDF417 CODBAR,UPCA,UPCA_CHK UPCE_CHK,DataMatrix,QRCode
Power Supply	220V/110V
Maximum power consumption	250W
Machine Net Weight	Lithium battery mode machine weight:7.8kg	Power model machine weight:6.4kg
Full power Continuous working time	About 4 hours(Lithium battery mode)
Charging Time	1 and half hour (Lithium battery mode)
Adaptive Temperature	0-40ºC

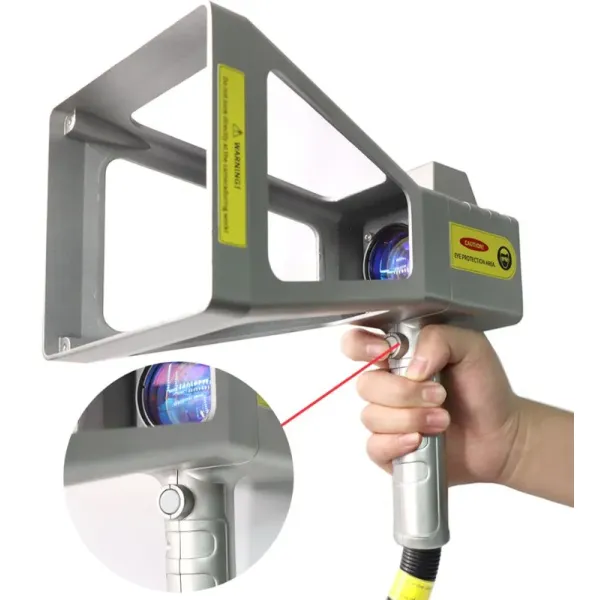

Red light positioning, no need to focus, easier operation, marking more clear

Portable Handheld Laser Marking Machine with Safe Cover Supports a variety of content marking
