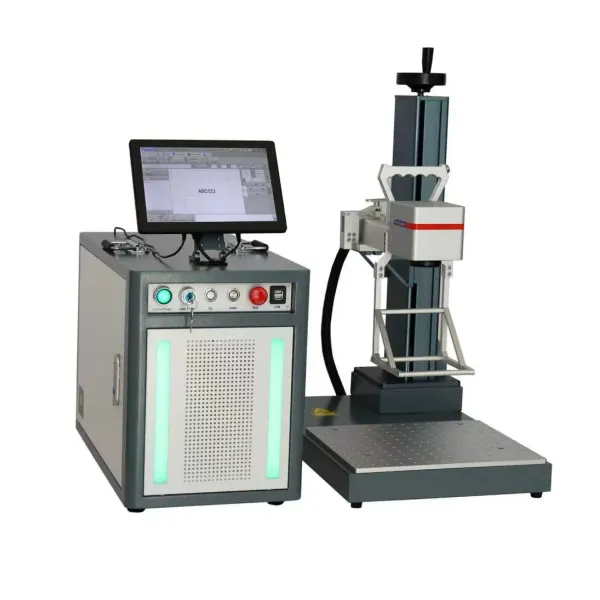

LED Light Portable and Tabletop Mopa Laser Marking Machine

Technical Class : Pulse Laser

Marking Method : Scanning Marking

Language : All Languages

Laser Classification : Solid Laser

Laser Power : 20W,30W,50W

Available Port : USB,232,Io, Mes

Type : Optical Fiber Laser Marking Machine

Product Name : Compact Desktop Laser Marking Machine /Cheap F

Laser Visibility : Visible

Laser : Optical Fiber Laser 1064nm

Model NO. : HBS-GQ-20S

Transport Package : Carton

Rotary Clamp : 80A-160A

Origin : Beijing

Laser Wavelength : Fiber Laser

Laser Source : Raycus,Guangzhi

Price : US $1,999-3,199 / P

Specification : 80cmx90cmx115cm

Applicable Material : Metal

Cooling System : Air Cooling

Trademark : HBS

Marking Area : 100X100mm,150*150mm

MOQ : 1 Piece

HS Code : 8456110090

Production Capacity : 200/Months

Contact Now

Compact desktop laser marking machine /Economical fiber laser markng machine for metal
HBS-GQ-20S is specially designed for users who need a light and small marking machine. It does not require a large machine housing and can also achieve marking functions. The design was displayed at the Beijing Machine CNC Exhibition in April 2025 and attracted a lot of attention from domestic and foreign users.
LED Light Portable and Tabletop Mopa Laser Marking Machine

Product features

  • Extremely high efficient, with high-speed galvanometer;
  • Mini size and light weight;
  • No consumables, low power consumption, less than 500W;
  • Completely air cooled, do not need water chiller, lower power consumption;
  • Robust under harsh environment and temperature change, can operate with batteries or supply from automobile lighter in case of power failure;
  • Low product depreciation cost. Ability to meet customers' mass and stable production;
  • Variety port to support all connection and integrated into production line easily
  • Built-in industrial touch screen with ThorX9 software which will have more functions
Item No.:HBS-GQ-20s
laser power20W/30W/50W /80w/100w optional
marking depth0.01-1mm
laser wavelength1064nm
marking speed100-7000mm/s adjustable
beam quality1.0M
marking area110*100,160*160mm
pualse energy0.8mJ
min character1mm
laser life100,000 hours
min line width0.03mm
pualse width2-350ns
repetition accuracy±0.005
cooling methodbuilt-in air cooling
consumption of machine500W
electric liftingcolumn height 460mm, effective height 380mm
power supply100V,220V 50HZ
focus methoddouble red light focus
worktable load bearing capacity30kg
communication portUSB,232,IO,MES,Internet
file formatall the characters in Windows
image formatAi,plt,dxf,jpc,svg,bot,dst
vector formatbmp,jpg,jpeg,gif,tag,png,tif,tiff
Gross weight33kgs

LED Light Portable and Tabletop Mopa Laser Marking Machine

Optional Parts
(2)Rotary Clamp
LED Light Portable and Tabletop Mopa Laser Marking Machine
(3)Air fume extractor
LED Light Portable and Tabletop Mopa Laser Marking Machine

Marking Samples illustration
LED Light Portable and Tabletop Mopa Laser Marking Machine

Packaging
1.Standard wooden cases with sponge filled inside for packing protection
2. The Wooden case is fumigation free which is suitable by sea & by air.
3. Customized Packing as per Customer's requirement.
LED Light Portable and Tabletop Mopa Laser Marking Machine

Office &work shop
LED Light Portable and Tabletop Mopa Laser Marking Machine
LED Light Portable and Tabletop Mopa Laser Marking Machine
LED Light Portable and Tabletop Mopa Laser Marking Machine
LED Light Portable and Tabletop Mopa Laser Marking Machine
LED Light Portable and Tabletop Mopa Laser Marking Machine

FAQ

Q1: I know nothing about this machine, what type of machine should I choose?

We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.

Q2: When I got this machine, but I don't know how to use it. What should I do?

We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q3: If some problems happen to this machine, what should I do?

We provide one year machine warranty. During the warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.

Q4: What's consumables of laser marking machine?

A: It does not have consumable. It's very economical and cost effective.

Q5: What's delivery time?

A: Commonly, the lead time is within 5 working days after receiving the payment.

Q6: What payment terms can you accept?

A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.

Q7: How is the shipping method?

A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
