Compact desktop laser marking machine /Economical fiber laser markng machine for metal
HBS-GQ-20 is specially designed for users who need a light and small marking machine. It does not require a large machine housing and can also achieve marking functions. The design was displayed at the Beijing Machine CNC Exhibition in April 2025 and attracted a lot of attention from domestic and foreign users.
Product features
1.Extremely high efficient, with high-speed galvanometer;
2. Mini size and light weight;
3. No consumables, low power consumption, less than 500W;
4. Completely air cooled, do not need water chiller, lower power consumption;
5. Robust under harsh environment and temperature change, can operate with batteries or supply from automobile ci-garette lighter in case of power failure;
6. Low product depreciation cost. Ability to meet customers' mass and stable production;
7. Variety port to support all connection and integrated into production line easily
8.Built-in industrial touch screen with ThorX9 software which will have more functions
| Item No.: |
HBS-GQ-20 |
| laser power |
20W/30W/50W optional |
| marking depth |
0.01-1mm |
| laser wavelength |
1064nm |
| marking speed |
100-7000mm/s adjustable |
| beam quality |
1.0M |
| marking area |
110*100,160*160mm |
| pualse energy |
0.8mJ |
| min character |
1mm |
| laser life |
100,000 hours |
| min line width |
0.03mm |
| pualse width |
2-350ns |
| repetition accuracy |
±0.005 |
| cooling method |
built-in air cooling |
| consumption of machine |
500W |
| electric lifting |
column height 460mm, effective height 380mm |
| power supply |
100V,220V 50HZ |
| focus method |
double red light focus |
| worktable load bearing capacity |
30kg |
| communication port |
USB,232,IO,MES,Internet |
| file format |
all the characters in Windows |
| image format |
Ai,plt,dxf,jpc,svg,bot,dst |
| vector format |
bmp,jpg,jpeg,gif,tag,png,tif,tiff |
| Gross weight |
33kgs |
Optional Parts
(2)Rotary Clamp
(3)Air fume extractor

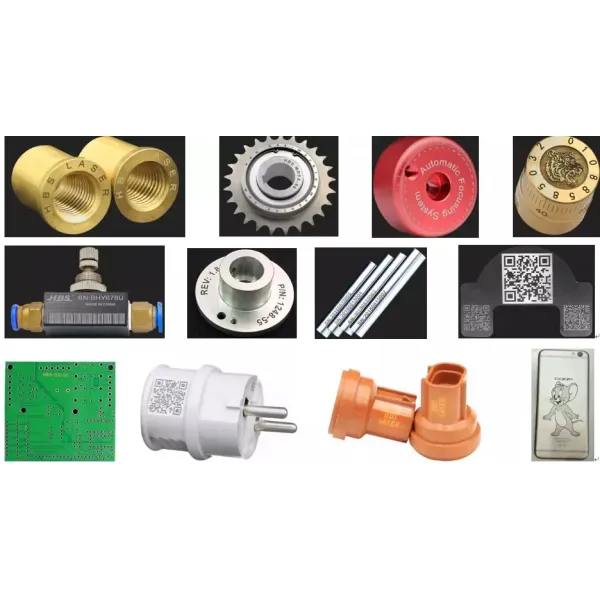

Marking Samples illustration
Packaging
1.Standard wooden cases with sponge filled inside for packing protection
2. The Wooden case is fumigation free which is suitable by sea & by air.
3. Customized Packing as per Customer's requirement.
Office &work shop
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: If some problems happen to this machine, what should I do?
We provide one year machine warranty. During the warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q4: What's consumables of laser marking machine?
A: It does not have consumable. It's very economical and cost effective.
Q5: What's delivery time?
A: Commonly, the lead time is within 5 working days after receiving the payment.
Q6: What payment terms can you accept?
A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
Q7: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
