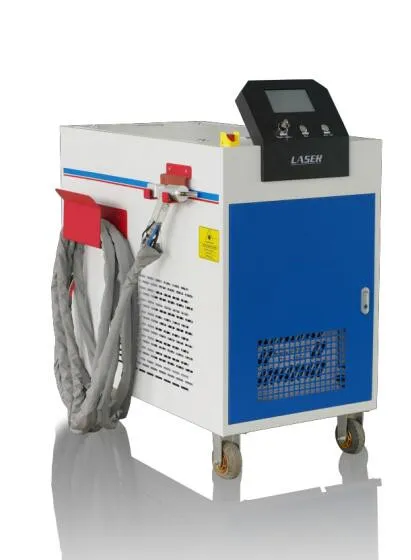

3000W Handheld Laser Cleaning Machine for Rust Cleaning

Origin : China

Laser Source : Fiber Laser

Product Name : 100W 200W 500W Metal Oil Paint Rust Remover Laser

Laser Wavelength : 1064nm

Trademark : HBS

Specification : 600*1000*1000mm

Model NO. : HBS-LC-3000

Working Temperature : Working Temperature

MOQ : 1 Piece

Production Capacity : 300 PCS Per Month

Price : US $5,999-10,999 /

Cooling Method : Air Cooling

Warranty : 2 Years

Use : Rust/Paint/Oxidation Removal

Scan Width : 10-80mm

Transport Package : Plywood

Control Type : Automatic

Laser Power : 20W/30W/50W/100W/200W/500W/1000W

HS Code : 8456110090

Contact Now

Portable Handheld Metal Rust Removal Fiber Laser Cleaning machine with 1000W 1500W 2000W laser source for Rust Paint

3000W Handheld Laser Cleaning Machine for Rust Cleaning

Introduction laser cleaning technologies

Laser cleaning is the new technology; it's the removal of contaminants or impurities on the surface of materials by physically removing the upper layer of the substrate by using laser irradiation.

Applications of laser cleaning machines

Metal surface rust removal and cleaning.
Paint removal & cleaning.
Oil stain, contaminant cleaning.
Coating surface cleaning.
Welding/coating surface pre-treatment.
Stone figure surface dust & attachment cleaning.
Plastic mould residues removal & cleaning.

Features and Advantages of Herolaser laser cleaning machine

Non-contact cleaning, good cleaning performance on workpiece.
Precision positioning, selecting cleaning, desired cleaning area can be applied to the workpiece.
No need chemical detergent, no consumables. Safe &environmental friendly technology.
Easy to operate, either portable or installed with robot for automatic cleaning.
High cleaning efficiency, time-saving.
Stable laser cleaning system, free maintenance.

main parameters

Items	Parameters
Laser power (W)	1000	1500	2000
Model code	ML-QF-LD-SC-HW1000	ML-QF-LD-SC-HW1500	ML-QF-LD-SC-HW2000
Laser type/ wavelength (nm)	Fiber laser/1064
Laser frequency(KHz)	10000~50000
Duty Cycle (%) Scan Speed	1~100
Cooling way	Water cooled(18~25ºC)
Cooling water	Deionized water / distilled water / purified water
Temperature of water (ºC)	18~23
Cabinet Size (mm)	1100x743x1238
Weight (kg)	220~235
Total consumption (W)	4300	5800	7300
Depth of focus (mm)	5
Length of fiber cable(m)	10 (customized)
Scanning width (mm)	0~150
Auxiliary gas	Compressed air/nitrogen (Requires oil and water filtration)
Gas pressure (MPa)	0.5-0.8
working environment temperature (ºC)	5~40
Weight of scanning head (kg)	0.76 (not included fiber output connector)

Note: This parameter is for some models, the data of special models may be slightly different please refer to the actual model purchased.

(External structure diagram of Laser Cleaning System)

Cleaning samples for reference

rust laser cleaning machine

20w laser cleaning machine

20w 1000 watt laser rust removal machine

3000W Handheld Laser Cleaning Machine for Rust Cleaning Images
