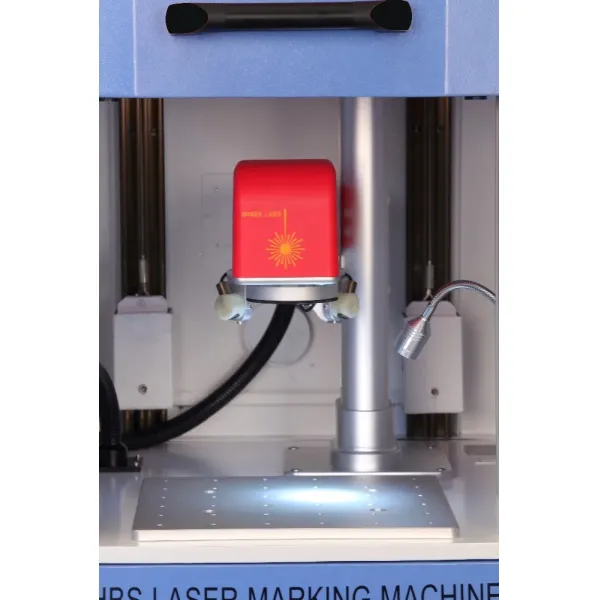

20W Fiber Laser Marking Machine Fully Enclosed

Model NO. : HBS-GQ-20A1

Laser Classification : Solid Laser

Laser Wavelength : Fiber Laser

Type : Optical Fiber Laser Marking Machine

Laser Power : 20W/30W/50W

Laser Visibility : Visible

Price : US $4,300-5,500 / P

HS Code : 8456110090

MOQ : 1 Piece

Trademark : HBS

Technical Class : Pulse Laser

Transport Package : Carton

Origin : Beijing

Product Name : Full Enclosed Fiber Laser Marking Machine

Specification : 720x820x99 mm

Production Capacity : 300/Month

Laser Source : Raycus

Applicable Material : Metal

Cooling System : Air Cooling

Cooling : Air Cooling

Marking Method : Scanning Marking

Laser Power Lifetime : 100, 000 Hours

Contact Now

20W Fiber Laser Marking Machine Fully Enclosed

I Product Description

Low power consumption with no consumables.
Low product depreciation cost.
Long-time maintenance-free.
Long working time, over 100,000 hours.
Operate with batteries or supply from automobile ci-garette lighter in case of power failure.
The electro-optical conversion efficiency of fiber laser marking can reach to 90% or above.

Machine Model	HBS-GQ-20A1
Laser Source	Raycus Advanced+
Average power	30 watts
Laser Power Lifetime	100,000 hours (Theoretical data)
Fiber cable length	2.5m
Cooling	Air cooling
Marking Wavelength	1064nm
Beam Quality	<1.5
Laser Repetition Frequency	≤100kHz
Marking Depth	0-1.5mm (adjustable with power setting, speed, materials)
Marking Speed	≤12000mm/s
Minimum Line Width	0.01mm
Minimum Character Size	0.05mm
Repetition Precision	±0.001mm
Standard Marking Area(mm)	110*110
Optional Marking Area(mm)	7575, 150150, 160160, 175175, 200200, 300300
Focal Length	Depends on marking area requirements
Power Consumption	≤500W
Machine Requirements	AC220V(±10%), 50Hz(±10%), 10A
Operation Temperature	-10ºC-60ºC
Humidity	5-95%
Control System	Win7, Win8, Win10, Win XP,
RAM	2GB-16GB
HDD	500G
Marking Formats	AI., PLT., DXF., TIFF., PNG., BMP., JPG. etc.
Computer Connection	2.0USB
Software	Ezcad 2.9.0

2.2.2 Optional Lens

Lens Type	HBS-65	HBS-110(Standard)	HBS-175
Focal Length	100mm	170mm	250mm
Marking Area	65mm*65mm	110mm*110mm	175mm*175mm
Note: HBS will provide lens with model HBS-200 for your company, marking area: 110mm*110mm

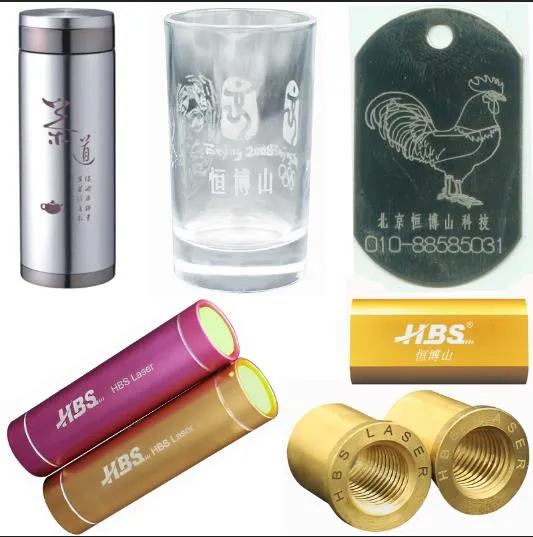

II Product Application

For metal as well as plastic product.
Widely used in the marking of gold, silver diamond and other jewelries, sanitary tools, food packaging, tobacco packaging, beer and beverage packaging, pharmaceutical packaging, medical equipments, watches & glassware, automotive parts, plastic & paper material, electronic hardware, gold bullion, and also in other areas such as aviation, aircraft manufacturing, projectile body and explosion proof materials.

III Exhibition

IV Packaging Details

Dimension: 880x1000x370mm (Machine Head: 300x520x570mm, Table:460x450x180mm)
Net Weight: 42.6kg (Machine Head: 27.2kg, Controller: 15.4kg)
Gross Weight: 52kg

V Company Info

Founded in 2001, HBS has 17 years experience in laser industry.
HBS has acquired quality certifications such as CE, BV, SGS, ISO9001, which ensures supreme quality.
HBS has provided numerous well-known companies with wide range of solutions and reliable marking equipment.
The price is not expensive considering it's factory price. Welcome to visit our factory!
