CO2 laser Leather Jeans Engraving Machine
I Profile
HBS CO2 laser marking machine is our company specially developed for non metal products labeling equipment, this equipment like American original CO2 laser, high speed shock, full sealing unique cavity structure.
The principle is that CO2 gas is charged into the discharge tube as the medium to produce laser. When the voltage is increased on the electrode and glow discharge is produced in the discharge tube, the gas molecules can emit laser, and the laser energy is amplified to form a laser beam for material processing. Automatic marking is realized by changing the laser beam path through the computer controlled mirror.
II Technical Parameter
| Laser Wavelength |
10640nm |
Marking Depth |
≤2mm |
| Repetition Frequency |
≤70KHz |
Marking Speed |
≤7000mm/s |
| Repetition Accuracy |
±0.001mm |
Marking Area |
110mmx110mm |
| Power Consumption |
≤1.2KW |
Power Supply |
220V/50Hz/10A |
III Product Features
- Printing accuracy, speed, carving depth control.
- Running without pollution and no consumables
- The marking software runs on WINDOWS platform and has Chinese interface. It can be compatible with AUTOCAD, CORELDRAW, PHOTO-SHOP and other software file formats, such as PLT, PCW, DXF, BMP, etc. It can also design graphics freely by computer using SHX and TTF font libraries directly.
IV Product Description
Widely used in nonmetal industry such as tobacco, food, drink, wine, leather, plastics, wood, jade, carnelian, etc.

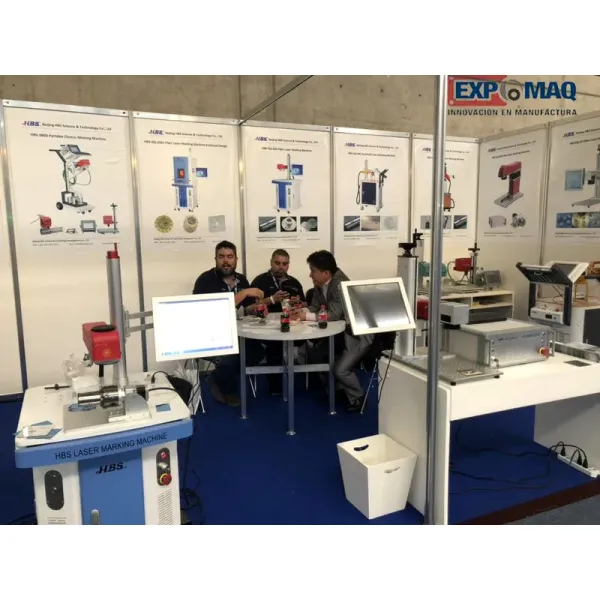

V Exhibition
VI Our Company
Beijing HBS Science & Technology Development Co., LTD is founded in 2001.
HBS is specialized in developing and manufacturing laser marking machine with perfect quality and excellent after-sales services.
HBS had provided numerous well-known companies with wide range of solutions and reliable marking equipment, with strong and sustainable traceability
.
