High Precision UV Laser Marking Machine For Plastic Glass

Applicable Material : Metal

MOQ : 1 Piece

Laser Visibility : Visible

Laser Wavelength : Deep Ultraviolet

Keywords : High Precision UV Laser Marking Machine

Type : Semiconductor Laser Marking Machine

Trademark : HBS

Production Capacity : 200/Months

HS Code : 8456301090

Price : US $15,000-29,999

Laser Classification : Semiconductor Laser

Origin : Beijing

Cooling System : Air Cooling

Technical Class : Continuous Wave Laser

Transport Package : Cartons

Marking Method : Scanning Marking

Specification : 530x220x660mm

Contact Now

High Precision UV Laser Marking Machine for Plastic Glass

I Product introduction:
Ultraviolet Laser Marking Machine is self-developed by HBS and has the world's most advanced technology. It has following features:high electro-optical conversion rate, long working time of nonlinear crystal, high stability, high positioning accuracy, high operation efficiency, optimized modular design for convenient installation and maintenance. Equipped with two-dimensional automated workstation, it can realize marking coninuously in multi-stage or large-size marking. The laser marking line is very fine that suitable for marking with high demand, it's mainly applied to mark the products as LCD screen, IC wafer and IC chips.

II Technical parameters:

Model	HBS-ZG-3 HBS-ZG-5
Laser Wavelength	355nm
Laser Power	3W/5W
Marking Area	50x50mm/100x100mm
Marking speed	≤7000mm/s
Beam Quality	≤2
Q Frequency Tuning	8KHz-15KHz
Min.Line Width	0.01mm
Min. Character Size	0.2mm
Repetition Accuracy	±0.003mm
Power Consumption	2Kw
Power Supply	200V/Single-Phase/50Hz/10A

III Product Application:
Mainly used in the marking and surface processing of materials such as of all sorts of glass, TFT, LCD screen, Plasma screen, textile products, ceramic chip, mono-crystal silicon safer, IC chip, sapphire and thin polymerfilm. The main advantage of Ultraviolet laser is in the complementing of the shortcoming of other bandwidth lasers in precision machining and processing of special materials.

IV Exhibition: METAV 2018
High Precision UV Laser Marking Machine For Plastic Glass

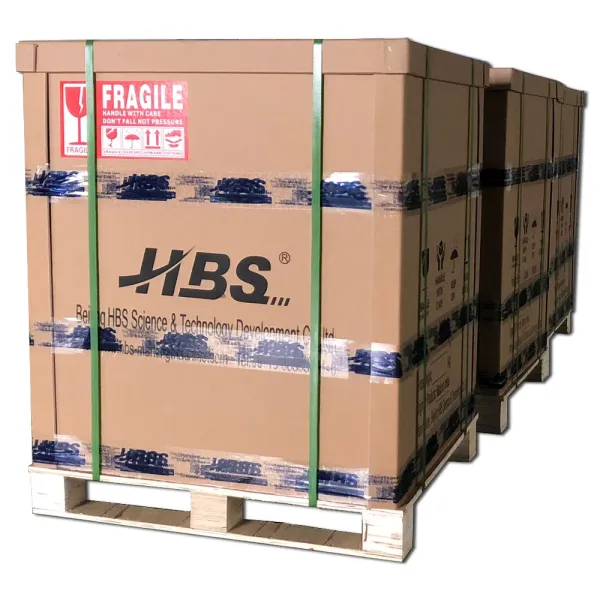

V Packaging Details:
Package: 530x220x660mm
High Precision UV Laser Marking Machine For Plastic Glass

VI Company Info:
Founded in 2001, HBS has 17 years experience in laser industry.
HBS has acquired quality certifications such as CE, BV, SGS, ISO9001, which ensures supreme quality.
HBS has provided numerous well-known companies with wide range of solutions and reliable marking equipment.
The price is not expensive considering it's factory price. Welcome to visit our factory!
High Precision UV Laser Marking Machine For Plastic Glass
