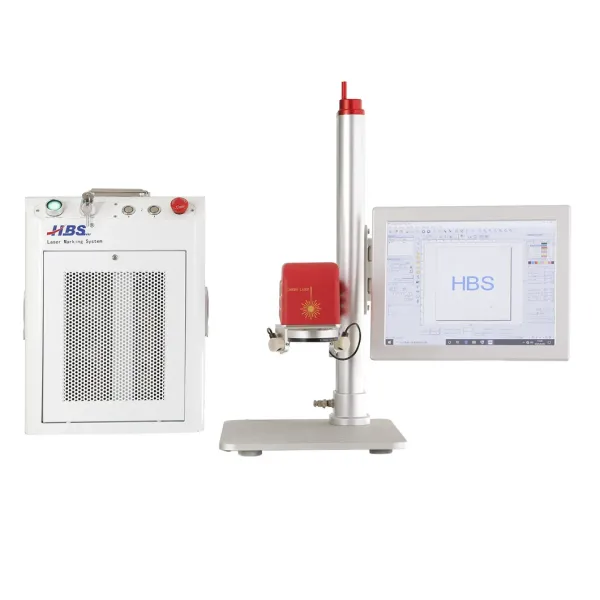

Hot selling Table Design Fiber laser marking machine
One year guarantee and life-time after sales service
1.Despriction of the Fiber Laser marking machine HBS-GQ-20B
Fiber Laser Marking Machine is the latest generation of laser marking system, resulting from our own research using the world's most advanced laser technology.
Adoption of fiber laser system for outputting laser, and then achieve marking functions by high-speed scanning galvanometer mirror system.
The electro-optical conversion efficiency of fiber laser marking can reach 90% or above, it has higher beam quality in comparison to semiconductor laser marking machine.
The machine is designed for long-time maintenance-free.
2. Detailed Technical Information of fiber laser marking machine
|
Laser Wavelength
|
1060nm
|
Beam Quality
|
<1.5
|
|
Laser Repetition
|
≤100KHz
|
Standard Marking Area
|
110mm x 110mm; Max:300mmx300mm
|
|
Making Depth
|
≤1.5mm(Can be Adjustable)
|
Marking Speed
|
≤12000mm/s
|
|
Min. Line Width
|
0.01mm
|
Min. Character Size
|
0.05mm
|
|
Repetition Precision
|
±0.001mm
|
Power Consumption
|
≤500W
|
|
Cooling method
|
Air cooled
|
Power Supply
|
220V/50Hz/10A
|
Optional Lens
|
Lens Type
|
HBS-65
|
HBS-110
|
HBS-175
|
|
Focal Length
|
100mm
|
170mm
|
250mm
|
|
Marking Area
|
65mm*65mm
|
110mm*110mm
|
175mm*175mm
|
|
Note: Without special request, HBS will fix our standard lens Model: HBS-110
|
3.Product Features of the fiber laser marking machine
- Extremely fast, with the high-speed galvanometer.
- Small volume, lightweight.
- No consumables, low power consumption, less than 500W.
- Completely air cooled, do not need water chiller, lower power consumption.
- Robust under harsh environment and temperature change can operate with batteries or supply from an automobile ci-garette lighter in case of power failure.
- Low product depreciation cost. Ability to meet customers' mass and stable production.
4.Application of the fiber laser marking machine
The machine is assembled with fiber laser from Germany or Britain or RAYCUS. The working time can reach 100,000 hours or above, competent in different work locations.
Fiber laser marking machines are used in a wide variety of applications such as in the marking of gold, silver diamond and other jewelries, sanitary tools, food packaging, tobacco packaging, beer and beverage packaging, pharmaceutical packaging, medical equipments, watches & glassware, automotive parts, plastic & paper material, electronic hardware, gold bullion, and also in other areas such as aviation, aircraft manufacturing, projectile body and explosion proof materials.
5. Marking samples of Laser marking HBS-GQ-20
6. Our Company
