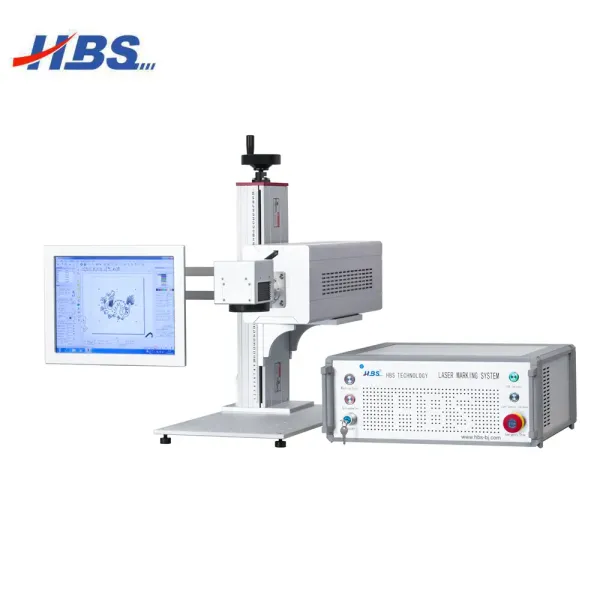

30W CO2 Laser Marking Machine for wood marking
I Technical Parameter
| Laser Wavelength |
10640nm |
Marking Depth |
≤2mm |
| Repetition Frequency |
≤70KHz |
Marking Speed |
≤7000mm/s |
| Repetition Accuracy |
±0.001mm |
Marking Area |
110mmx110mm |
| Power Consumption |
≤1.2KW |
Power Supply |
220V/50Hz/10A |
Optional Lens
| Lens Type |
HBS-65 |
HBS-110(Standard) |
HBS-175 |
| Focal Length |
100mm |
170mm |
250mm |
| Marking Area |
65mm*65mm |
110mm*110mm |
175mm*175mm |
II Product Feature
Low power consumption with no consumables.
Low product depreciation cost.
Long-time maintenance-free.
Operate with batteries or supply from automobile ci-garette lighter in case of power failure.
The electro-optical conversion efficiency of fiber laser marking can reach to 90% or above.
Widely used in nonmetal industry such as tobacco, food, drink, leather, plastics, wood, jade, carnelian, etc.
Foot pedal Systems
The foot pedal can be fixed with the machine to achieve automatic marking. The marking will starts while the operator push the pedal. This system will support the clients to realize mass production.
Normally, for all of fiber laser marking machine, it will produce smoke and dust air during its operation. For sake of better protect the operator from inhalation of the smoke or dust air, our company also provides the special device- air fume extractor, this device is mainly used for absorb the smoke and dust air when the marking machine is working, and clean the dust and smoke.
Technical Specification for Industry Panel Touch-screen Computer
| products specifications |
|
RPT-15E-C37 |
| System parameters |
processor |
Intel Celeron 1037u 1.8GHZ low consumption processor |
| |
chipset |
lntel NM70 |
| memory |
2GB/DDR3 |
| disk |
64Gsolid-state |
| display |
24-bit dual chanellvds,, support dual display |
| I/O |
LAN port |
1*Realtek 100/1000Mbps Rj45 ports |
| audio |
onboard HDA ALC662,LINE-out and MIC-in ports |
| Serial ports |
2*RS232 |
| USB |
4* USB 2.0 ports |
| VGA |
1 |
| HDMI |
1 |
| DC-IN |
DC 9V~36V |
| watchdog |
0~255s programmable setting |
| LED |
type |
15" XGA TFT LCD |
| Max resolution |
1024*768 |
| Maximum color |
16M |
| Display Area |
368x 281mm |
| reaction time |
16ms |
| backlight |
LED |
| backlight MTBF |
50,000 hours |
| contrast |
500:1 |
| Maximum view |
(H)130/(V)120 |
| Touch screen |
type |
4- wire resistive touch screen |
| resolution |
4096 x 4096 |
| Response time |
<5ms |
| Surface hardness |
3H |
| touch pen life |
intensty 250g,5million times |
| Constant temperature and humidity test |
85°C / 90%RH / 1000 hrs |
| High temperature test |
85°C /1000 hrs |
| installation |
Panel and VESA mount Compatible |
| color |
silver gray |
| Enviromental parameter |
Work temperature |
-20~60ºC |
| Storage temperature |
-40~80ºC |
| relative humidity |
10~95%@40ºC(No condensation) |
| vibration |
50~500Hz,1.5G,0.15mm peak value |
| shock |
10G(11ms) |
| operating system |
full support for Windows XP/Windows 7 /Linux system |
III Exhibition
IV Company Info
Beijing HBS Science & Technology Development Co., LTD is founded in 2001. HBS is specialized in developing and manufacturing laser marking machine with perfect quality and excellent after-sales services.
HBS had provided numerous well-known companies with wide range of solutions and reliable marking equipment, with strong and sustainable traceability.
